CHAND COMPANY - Sewak Magnetic Chuck & Plate

DIGITAL CALIPER

Resolution: 0.01mm/0.0005"
Model No.: 1112-150
Price : 1586
Model No.: 1112-200
Price : 2409
Model No.: 1112-300
Price : 4428

VERNIER CALIPER

Graduation:0.02mm/0.001
Model No.: 1205-1502
Price : 1185

DIAL CALIPER

Graduation: 0.01mm
Model No.: 1312-150A
Price : 2103
View

DIGITAL HEIGHT GAUGE

Resolution: 0.01mm/0.0005"
Model No.: 1150-300
Price : 11843

DIAL INDICATOR

Graduation:0.01mm
Model No.: 2301-10
Price : 1210

Dial Test Indicator

Graduation: 0.01mm
Model No.: 2380-08
Price : 2178

BORE GAUGE

Repeatability:0.003mm
Model No.:2322-35A
Price : 4913

Model No.:2322-60A
Price : 4914

Model No.:2322-160A
Price : 5101

MAGNETIC STAND

For digital/dial indicators and dial test indicators
Model No.: 6201-60
Price : 861

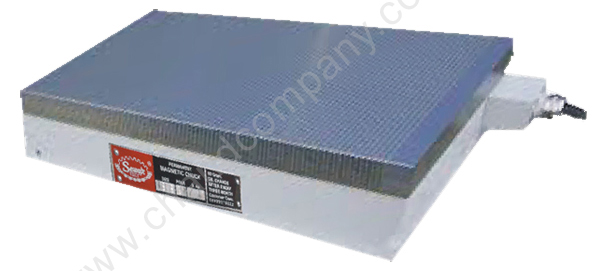

HEAVY DUTY FINE PITCH MULTI COIL ELECTRO MAGNETIC CHUCK

Works holding device for surface grinding machines.

Each pole is having separate coil as such very strong & even magnetic flux is generated.

Mag-D-Mag with variable control unit allows to neutralize the residual magnetism precsely using a microoprocessor based control circuitry.

Polse individually magnetized for full liading power.

Variable ssupply to vary power which helps in alignment &removing of waepages ofthin jobs.

Chuck is tested for Slippeing force. Waterproof test emperature rise test. Electrical & Demagnetizing tests.

Also available in longitudinal Poles.

We also manufacture Special chuck to suit individual repuirements.

Good quality & standard electrical accessories.

Sr.	Code	Size in	Size mm	Pole	Number of	Net Weight
No	No	Inches	L X W X H	Pich mm	Pole	Kg
1	618	18 x 6 x 4	450 x 150 x 100	4+1
2	820	20 x 8 x 4	500 x 200 x 100	4+1
3	824	24 x 8 x 4	600 x 200 x 100	4+1
4	1024	24 x 10 x 4	600 x 250 x 100	4+1
5	1224	24 x 12 x 4	600 x 300 x 100	4+1
6	1030	30 x 10 x 4	750 x 250 x 100	4+1
7	1230	30 x 12 x 4	750 x 300 x 100	4+1
8	1036	36 x 10 x 4	900 x 250 x 100	4+1
9	1230	30 x 12 x 4	900 x 300 x 100	4+1
10	1040	40 x 10 x 4.3/8	1000 x 250 x 110	4+1
11	1240	40 x 12 x 4.3/8	1000 x 300 x 110	4+1
12	1060	60 x 10 x 4.3/8	1500 x 250 x 110	4+1
13	1260	60 x 12 x 4.3/8	1500 x 300 x 110	4+1
14	1660	60 x 16 x 4.3/8	1500 x 400 x 110	4+1
15A		MAG D-MAG with variable controL uniT Upto 1000L 2Amp.
		MAG D-MAG with variable controL uniT Upto 1000L 3 Amp.
		MAG D-MAH with variable controL uniT Upto 1000L 2 Amp.
		& battery Back-up (20minutes)		Upto 1500L 3 Amp.
